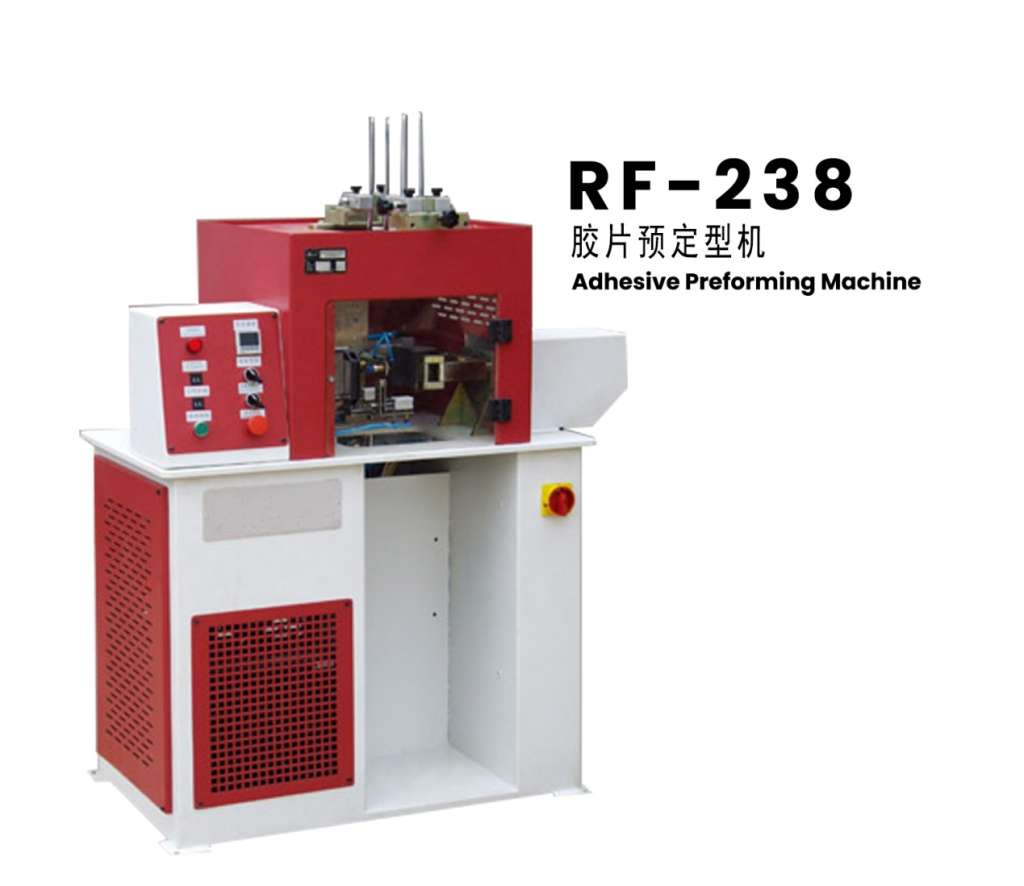

RF-238
RF-238
Detail

产品特点:

用于热熔胶片的预成型加工。

功能:

经过预成型处理的胶片更能服贴地夹在后帮和衬里之间。具有冷热软化定型功能,热模温度60-100℃,冷模温度可降至-15℃以下,冷热温度可依不同材质自行调整。所有动作都由PLC控制,自动化程度。人性化自动化设计,操作容易,提高工作效率。



电源电压 Power voltage

AC 220V 50 Hz

总功率 Total power

0.8 Kw

气源压力 Air pressure supply

0.4MPa

胶片长度 Working temperature

160-300mm

外形尺寸 External dimensions

1.12×0.62×1.5(m)


Product characteristics:

For preform processing of hot melt adhesive sheet.

Functions:

The preformed film is more easily sandwiched between the rear side and the lining.

It has the function of cold and hot softening, hot mold temperature 60-100 , cold mold temperature can be reduced to below -15 , cold and hot temperature can be adjusted according to different materials. All actions are controlled by the PLC, degree of automation.

Humanized automatic design, easy to operate, improve work efficiency.
