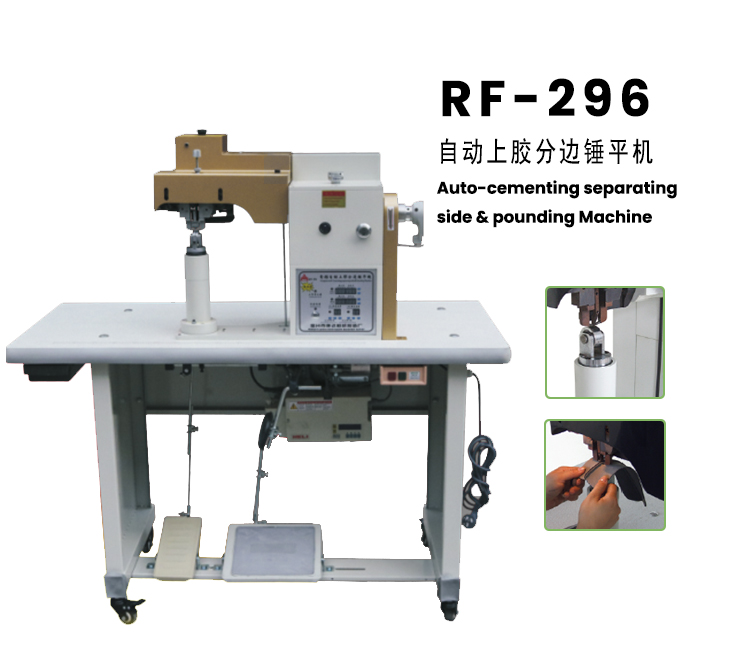

RF-296
RF-296
Detail


Product details.

Uses:

The machine is suitable for the seams of various leather products, such as PVC, pu, natural leather, artificial leather and cloth, etc.

Through the machine work can improve work efficiency, reduce procedures, do not damage the fabric and other advantages.


Characteristics:

1. This machine is an improved machine which integrates the functions of automatic electronic gluing machine, folding machine and massage machine. The leather is automatically jointed and divided into edges by this machine, and the working efficiency is improved and the working procedure is reduced by gluing hammer flat at one time. One machine works as many as ten people.

Moreover, the adhesive on the sides is uniform and does not injure the fabric.

2. The machine adopts hot sol, which can save the time of putting white glue, yellow glue and so on through the test box, and meet the requirements of environmental protection.

3. It is convenient to adjust the temperature and flow rate of the hot sol by electron. The output is stable and accurate, and the speed is random through the automatic control of the output of the glue by the photo-inductance resistor.

4. This machine is suitable for different types of work, easy to adjust, easy for employees to operate.

5. Using Taiwan electronic motor, the performance is stable and the failure rate is low.

Technical parameters:


型号
MODEL
电压
VOLTAGE
功率
POWER
总功率
(POWER
外形尺寸
DIMENSIONS  L*W*H
净重
(NET WEIGHT)
RF-296
220伏特(v
50-60赫兹(HZ
0.45千瓦KW
0.65千瓦(KW
1200X550X1200毫米(mm
113千克(KG
